Quick Details

  • Products Status: Stock
  • Application: Support general USB interfaces of USB3.1, USB3.0 and USB2.0
  • Type: External
  • Style: SSD
  • SSD Capacity: 128GB
  • Size: 82mm*39mm*10.25mm
  • Interface Type: USB
  • Speed: N/A
  • Cache: N/A
  • Brand Name: KingSpec
  • Model Number: Z1-M128
  • Place of Origin: Guangdong, China (Mainland)
  • Capacity: 128GB

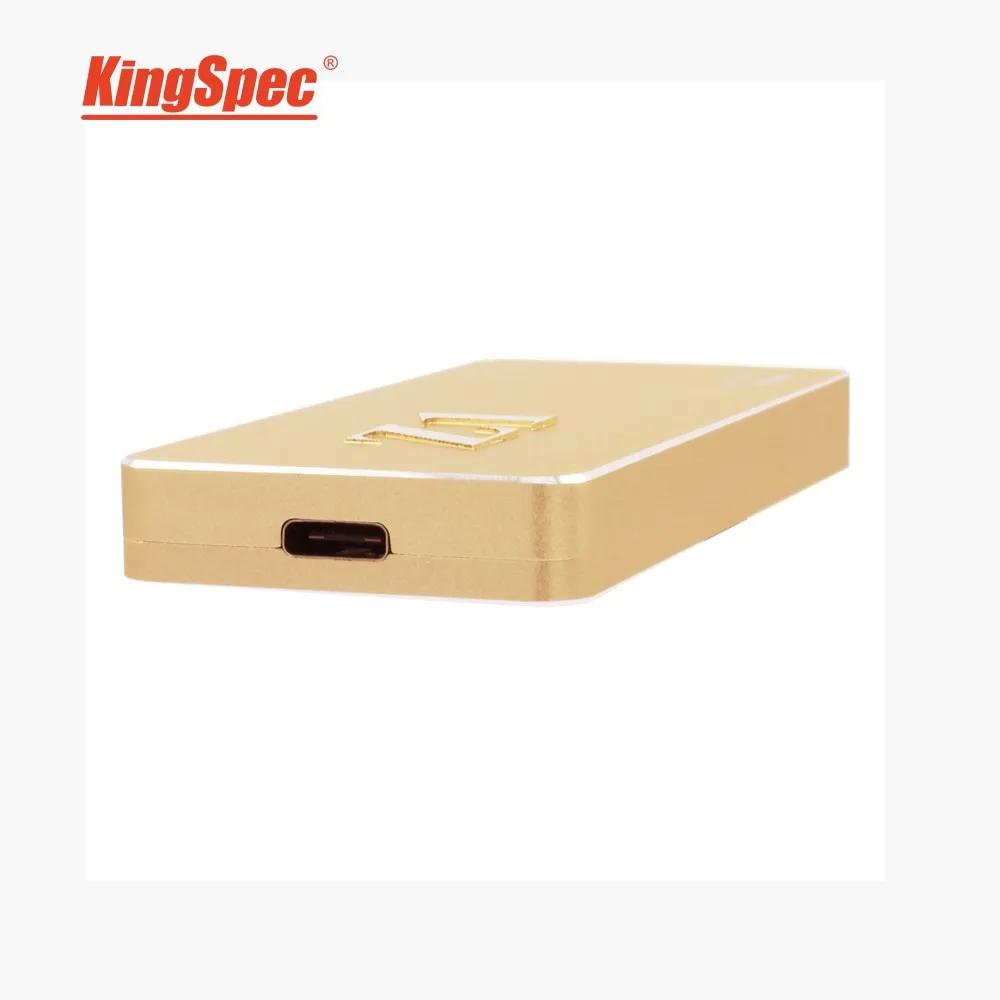

  • Interface: USB3.1 Type-C

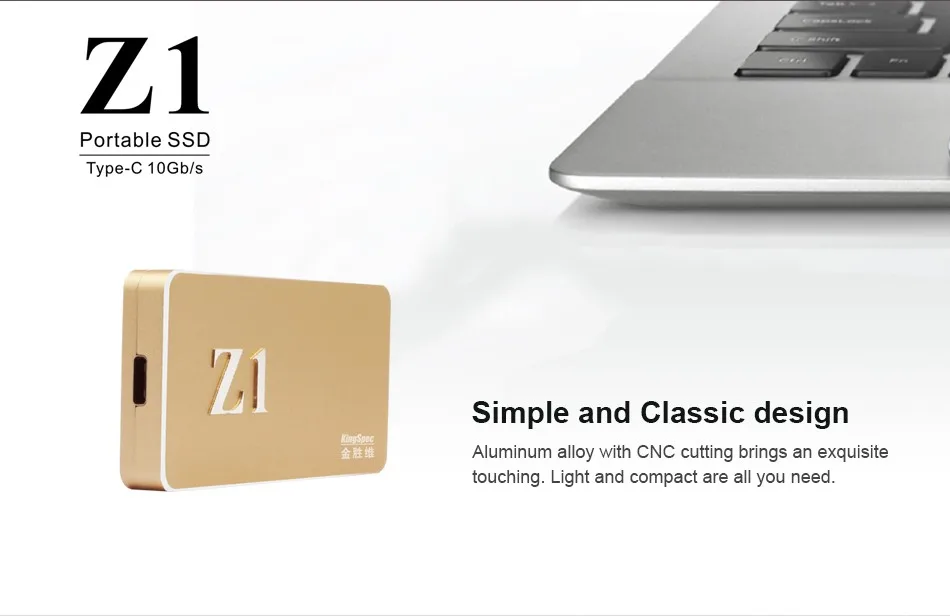

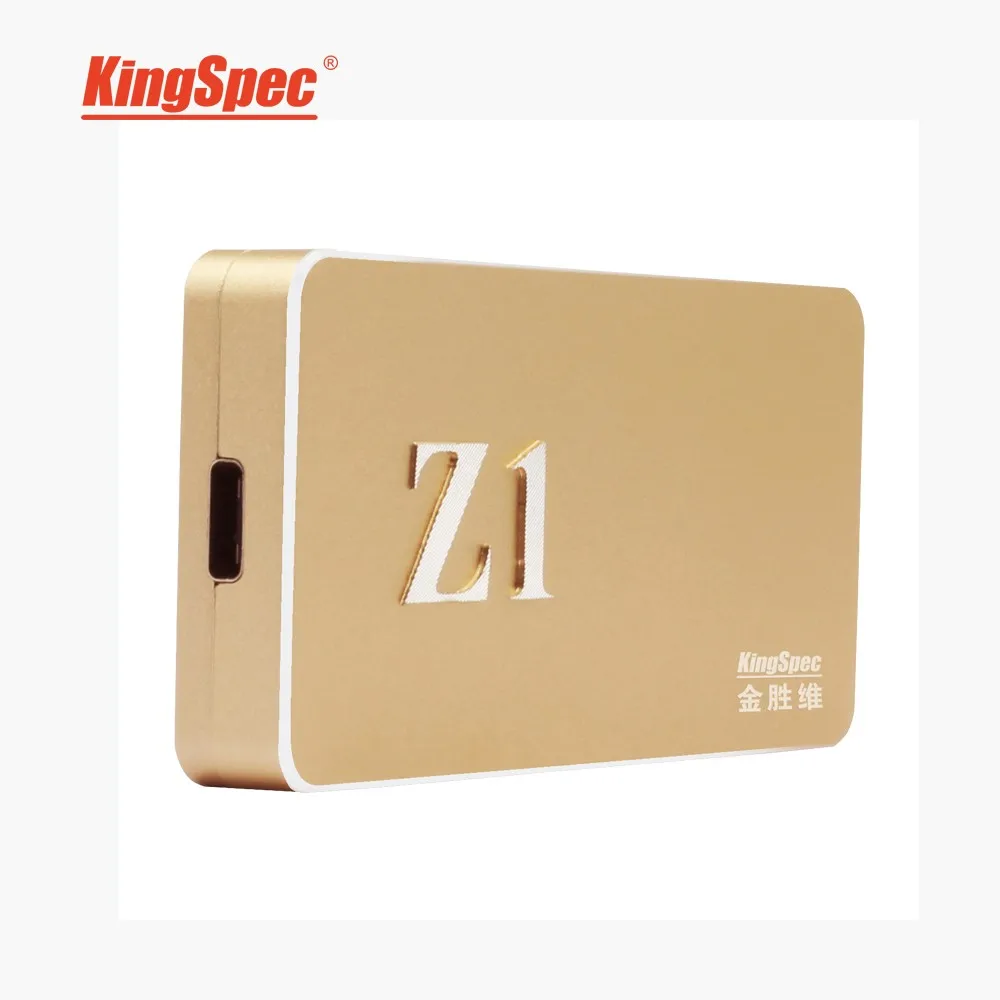

  • Case: Aluminum alloy with CNC processing
  • Hard Disk Size: 82mm*39mm*10.25mm
  • Flash type: MLC NAND Flash
  • Color: Gold
  • Name: 128GB External USB Hard Drive
  • Warranty: MLC 3 years; SLC 5 years

Packaging & Delivery

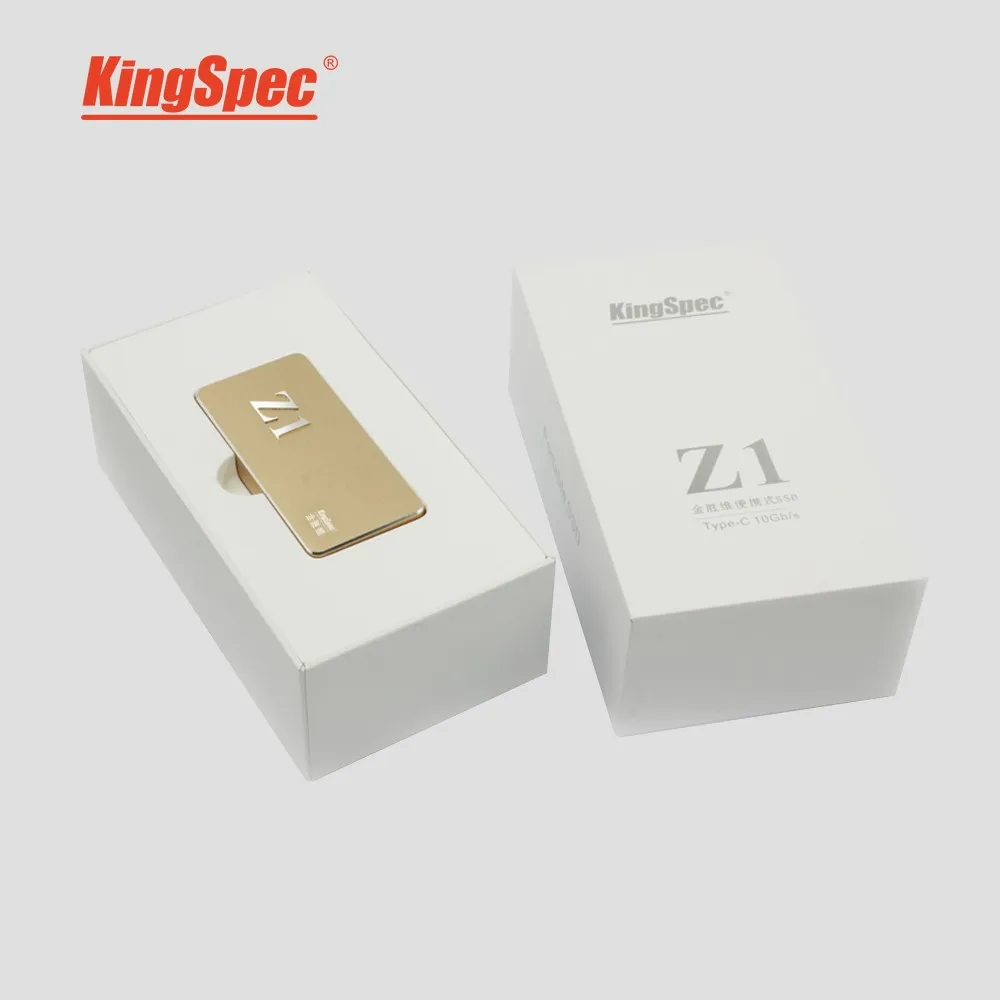

Packaging Details Gift packing

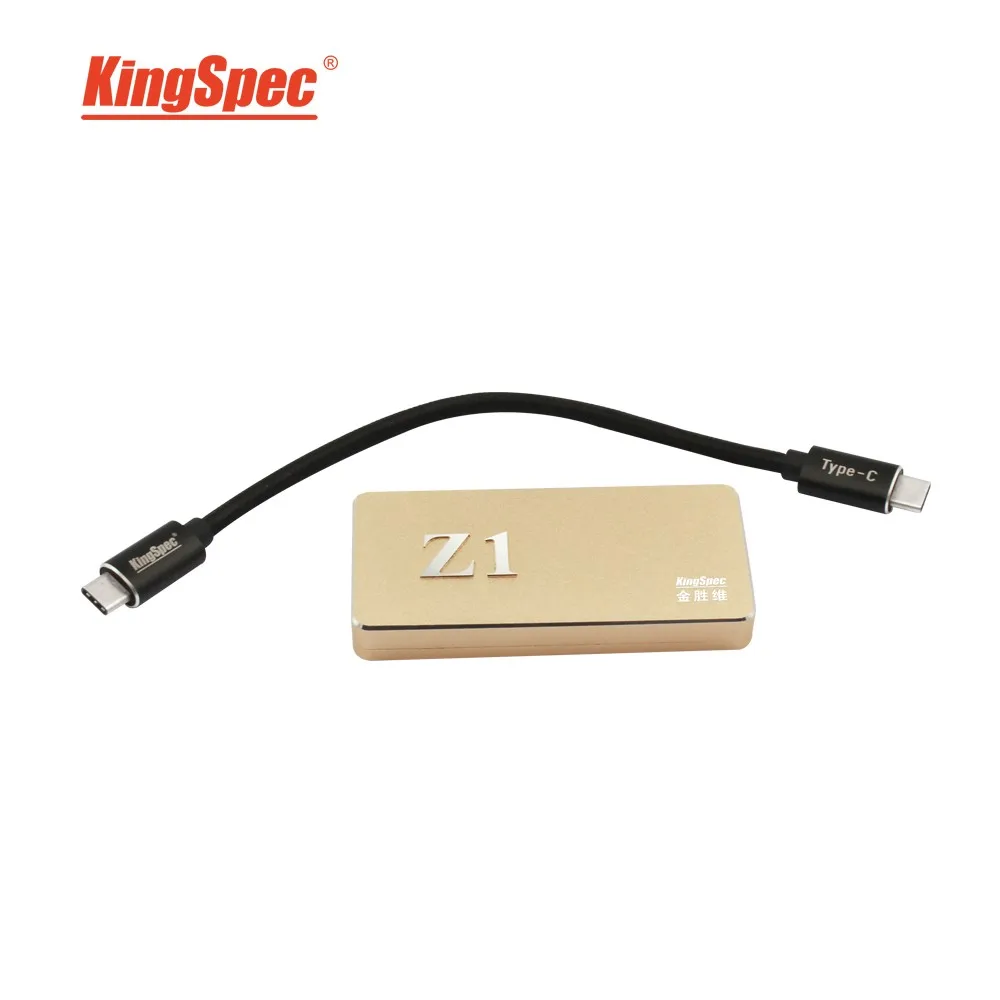

Accessories:
Packing case X1;
Z1 SSD X1;
User Manual X1;
Data cable X1(Std. A to typeC)
Delivery Time Shipped in 5 days after payment

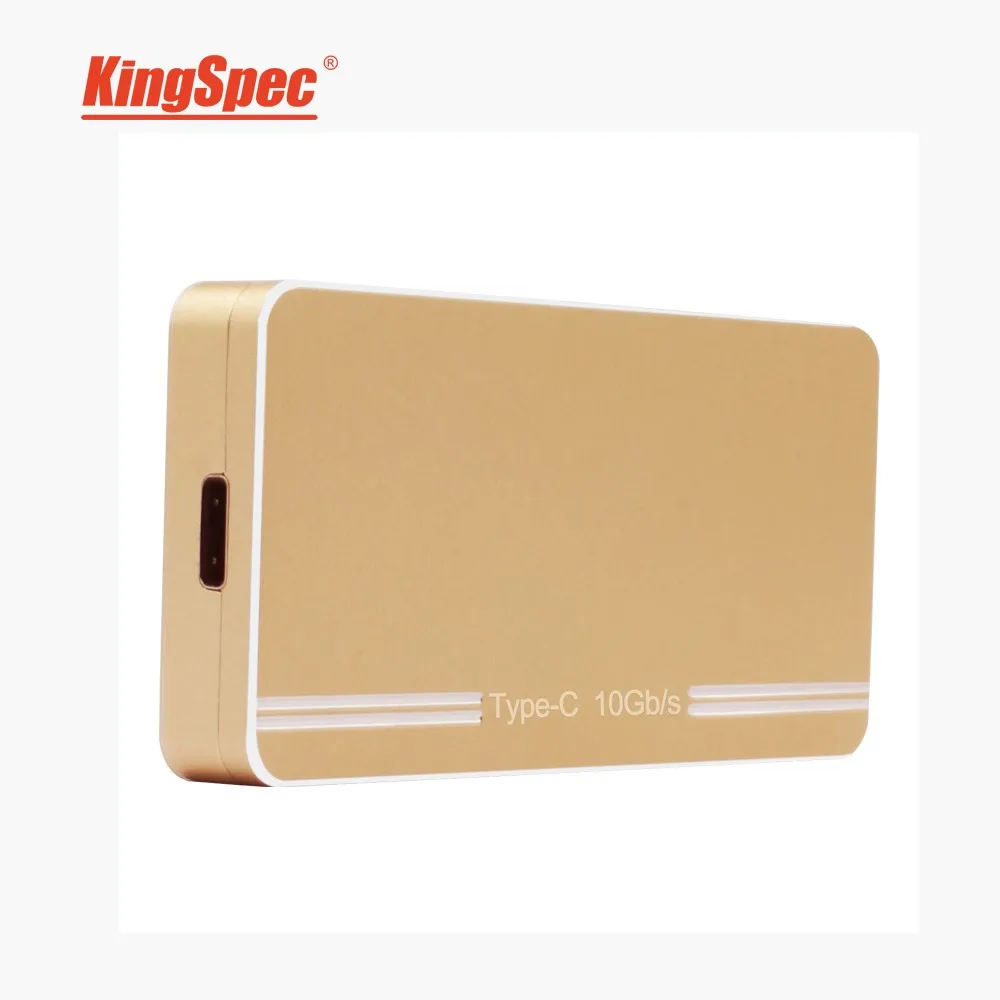

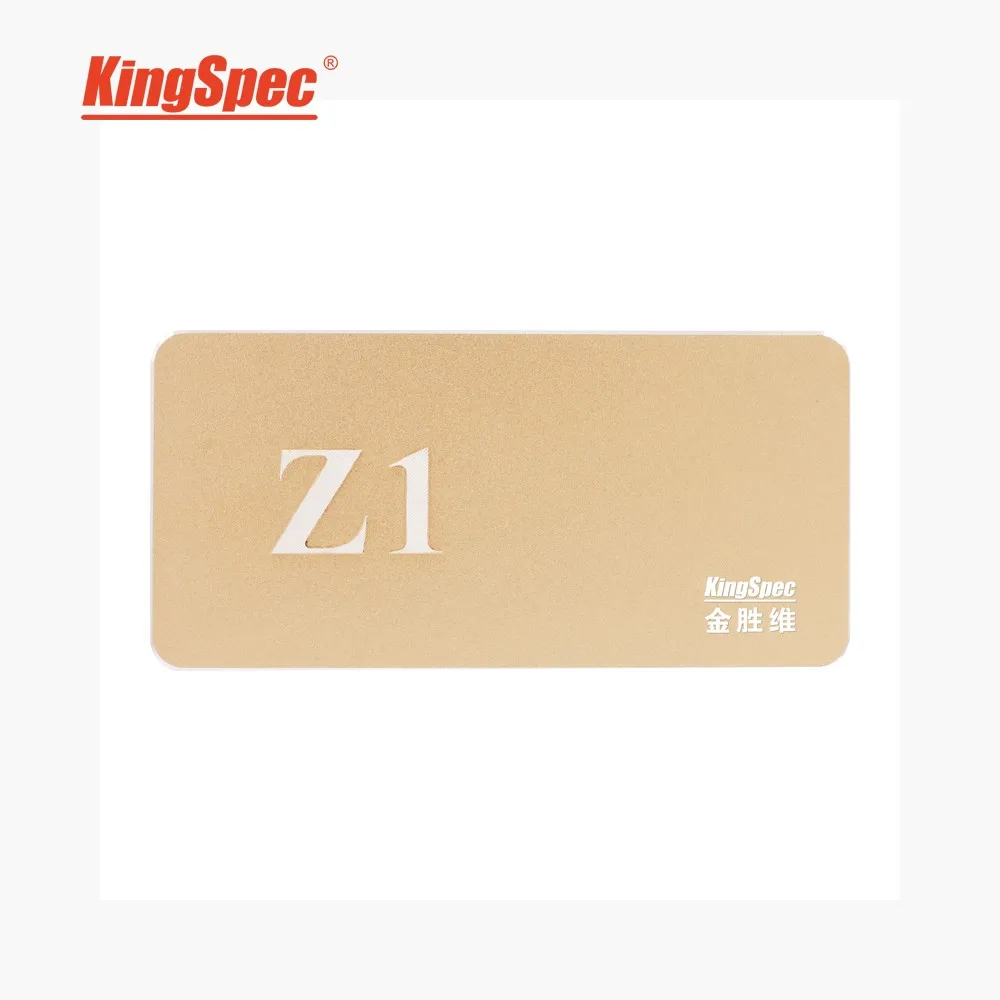

Product Description

Type C interface will realize data sharing between different devices to simplify your digital life.

Support general USB interfaces of USB3.0 and USB2.0.


Support all devices with USB Type C interface.



Model No.: Z1-M128

Factor: 82mm*39mm*10.25mm±0.5mm(L×W×H)

Interface: Type-C USB3.1 Gen.2 10Gbps

MLC Capacity: 128GB, 256GB, 512GB, 1TB

SLC Capacity: 128GB, 256GB

Average Access time: 0.1ms (1TB)

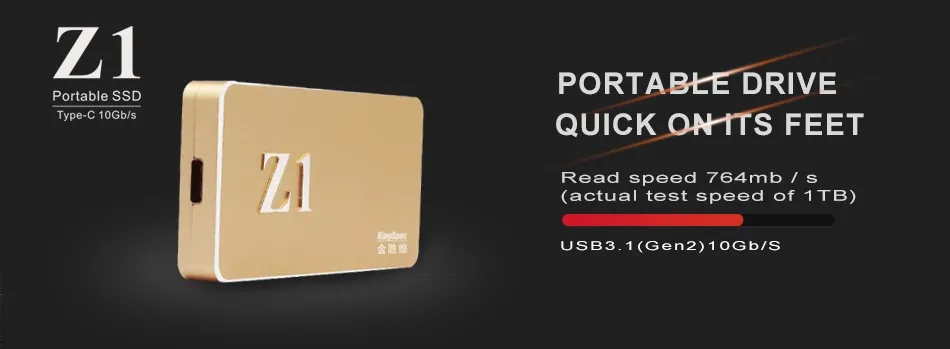

128GB Sustained Read/Write: 700~740 /300~320MB/s (for reference only)

4KB Sepuential Read IOPS: 38000 (1TB)

4KB Sepuential Write IOPS: 40000 (1TB)

MTBF: 1, 000, 000hours

Operating Temperature: 0~70º C

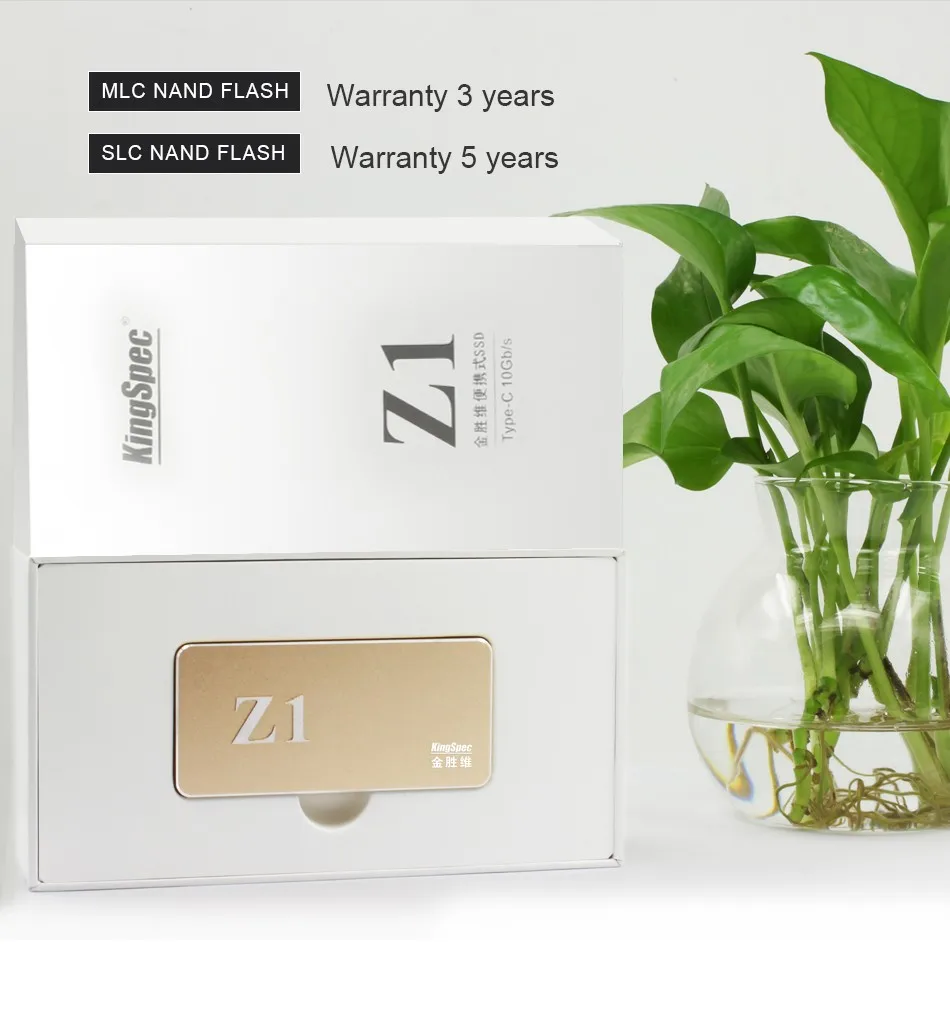

Warranty: MLC 3 years; SLC 5 years

Packing: standard gift box


Our products’Competitive Advantage:

1) 2016 new product

2) Fast read/write speed, faster application load times

3) High reliability, data stability

4) Low energy consumption

5) Anti-shock, anti-dust, Noiseless, superior security

6) Shockproof, rugged design safe and high stability and reliability

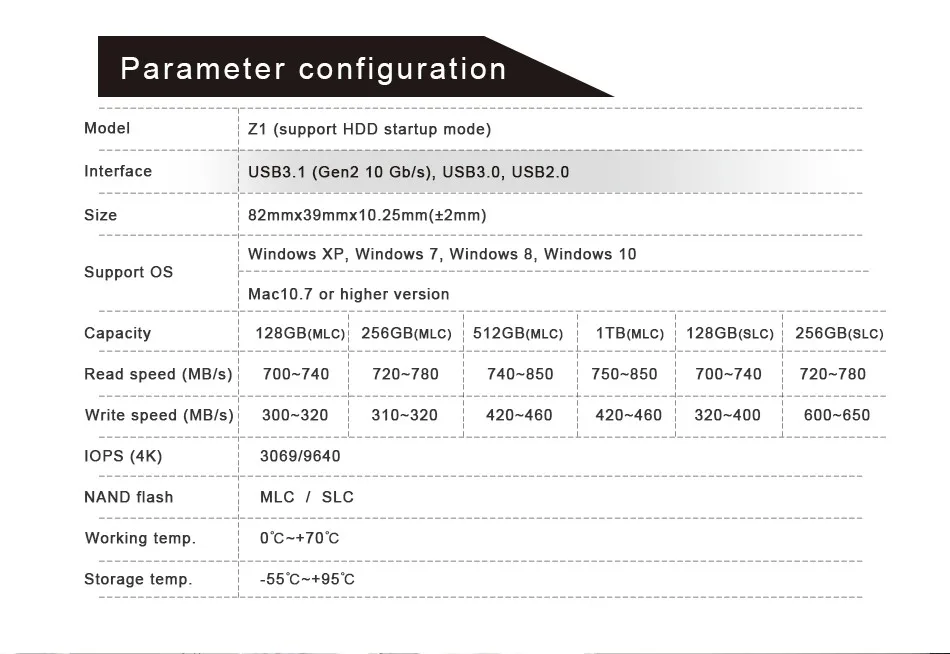

Item Datasheet:


Model:  Z1-M128

General


Size: 82mm*39mm*10.25mm±0.5mm(L×W×H)

Capacity: 128GB, 256GB, 512GB, 1TB

Interface and compability: Type C interface, support USB 3.1 standard, downward compatible with USB 3.0 and USB 2.0

Support OS: Windows XP, Windows 7, Windows 8, Mac10.7 or higher

Performance


Capacity: 128G 256G 512G 1TB

Read (MB/s): 700~740 720~780 740~850 750~850

Write(MB/s): 300~320 310~320 420~460 420~460

4K random read IOPS: 38000 (1TB)

4K random write IOPS: 40000 (1TB)

Average access time: 0.1ms (1TB)

Flash


 NAND Flash: MLC/SLC (SLC max. 256GB)

Features


Input voltage: 5V±5%

Idle power: 1.5W(1TB)

Working power: 7.5W(1TB)

Stability and reliability


Write life: 8 years (write 100GB data to the disk per day)

Read life: Unlimited

Storage: 10 years under 25℃

MTBF: 1,000,000 hours

ECC: Hardware BCH ECC capable of correcting errors up to 66-bit/1KB

Bad block management: Automatic bad bolck management

Environment


Working temp.: 0℃~70℃

Storage temp.: -20℃~75℃

Humidity: 5-95%

Warranty 3 years

Certificate CE, ROHS, FCC, REACH

Mass production Yes NO EOL

Testing platform

"CPU: Intel® Core(TM) i3-6300 CPU @ 3.80GHz
Chipset: Intel® Z68 Express Chipset
Memory: Kingston DDR4 4GB
OS: Microsoft Windows 8 Professional 64bit
AHCI Driver: Intel Chipset SATA AHCI Controller 10.5.1.1001
BIOS Settings: AHCI Mode"

Testing tool

"Crystal DiskMark3.03
AS SSD Benchmark 1.6.4237.30508
ATTO Disk Benchmarks V2.47
Iometer2008
HD Tune Pro5.00"

With years of export experience along
With years of export experience along
With years of export experience along
With years of export experience along
Related Products

256GB Internal SSD

128GB Internal SSD


512GB SATAIII SSD

Portable SSD

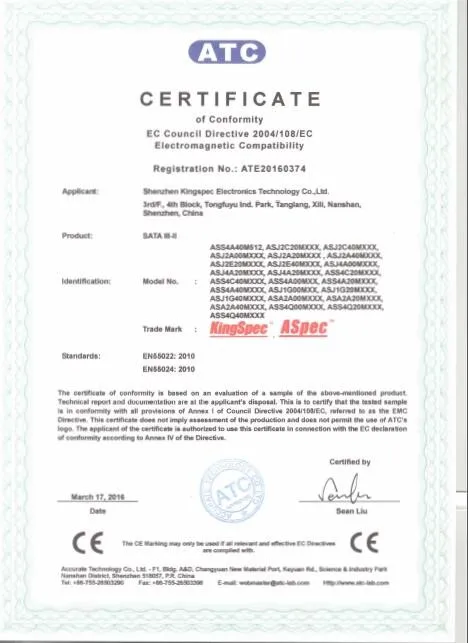

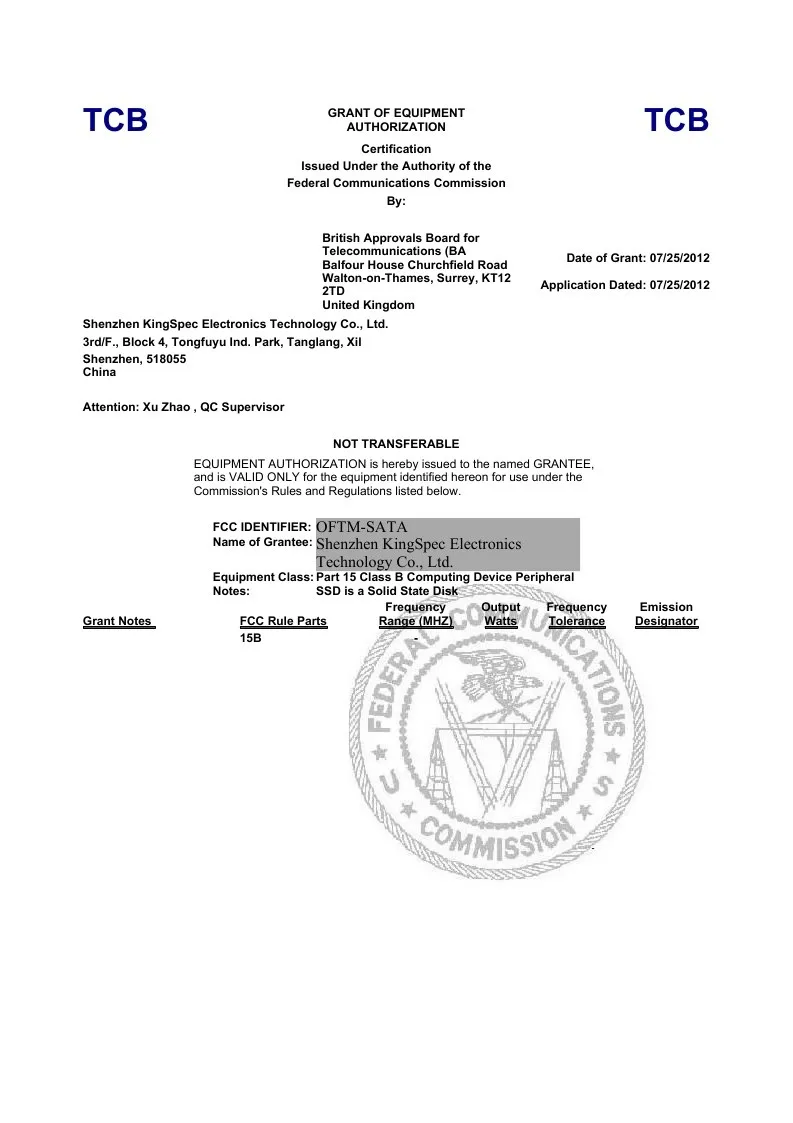

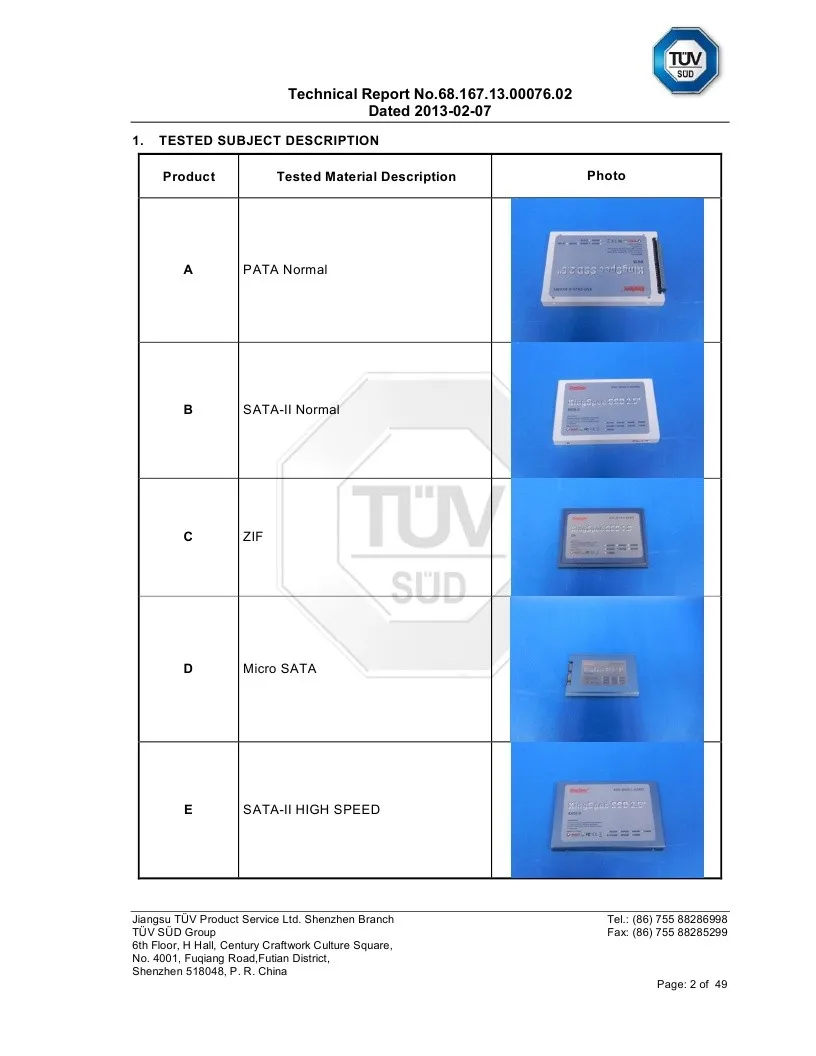

Certifications
Packing & Delivery

Packing

1.1 Accessories:

Packing case X1;

Z1 SSD X1;

User Manual X1;

Data cable X1(Std. A to typeC)

2.1 Environment requirements

In order to achieve best performance, please follow these requirements below:

USB3.1 interface is recommended as the best configuration that can support Z1 SSD reach the best data transferring rate.

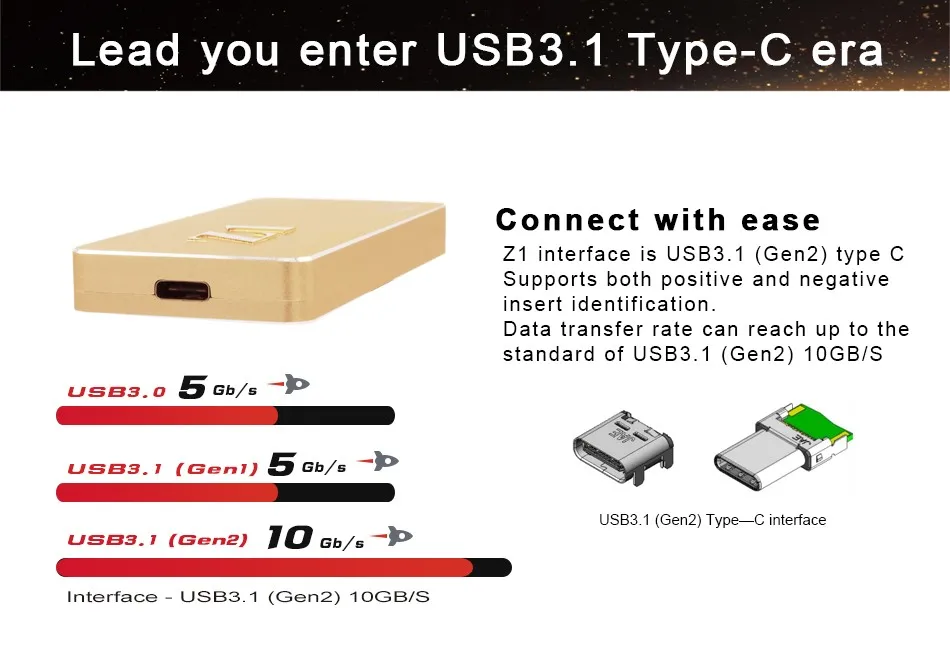

3.1 USB interfaces

USB types and transferring rates:

USB1.1 12Mbps;

USB2.0 480Mbps;

USB3.0 5Gbps;

USB3.1 10Gbps.

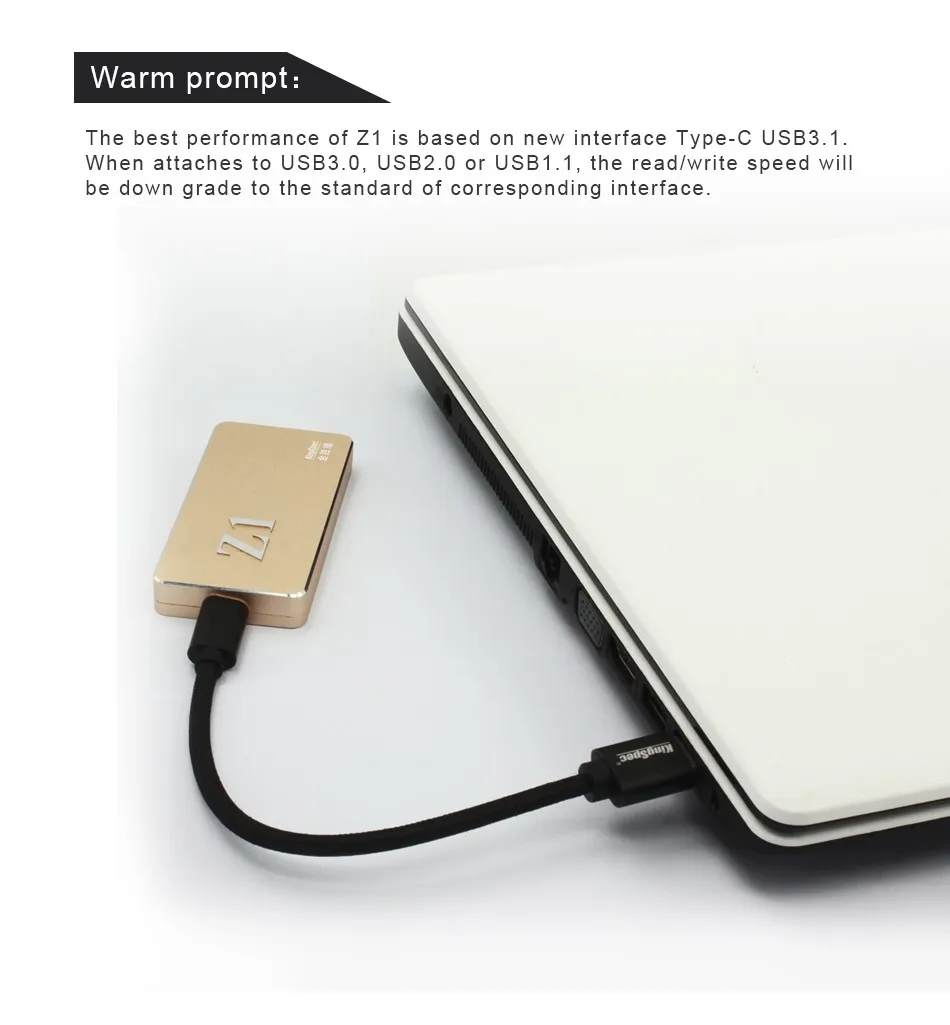

The performance of Z1 will be affected when connect to lower grads USB interface (eg.USB3.0, USB2.0 and USB1.1).


FAQ

Notice:

Z1 SSD performance might be affected by different operating systems (OS); such as OS without UASP (USB-SCSI agreements protocol) supports, performance of SSD will reduce.

When Z1 connect to USB1.1 or USB2.0, PC might not be able to detect the SSD drive, or bump up a warning that reminds you to format drive. Please DO NOT format, otherwise you will lose data PERMENANTLY. Reconnect Z1 to USB3.0 or USB3.1, it will run normally.

Connect Z1 to other devices
There may be limitations if you connect Z1 to other electrical devices, such as TV, Printer, Audio Player, mobile phone etc., please pre-check the specifications of terminal devices to make sure Z1 can be detected.

How to use Z1
You need to format Z1 SSD before first use.
Activation procedures: connect Z1 SSD to PC; Click on ‘my computer’; enter ‘disk management’; find Z1 SSD icon and right click to find formatting; after formatting, your Z1 SSD is ready to use.

Notice:
Since the OS of Windows is different from MAC, there may be limitations on data reading and writing.
If your PC has one operation system only, please find the relative format method as the table showing below:

If your PC has two operating systems, please format Z1 SSD as exFAT form, and please follow instructions below to recover the accessing permission.

For Windows OS: when warning dialog window ‘restricted accessing ’jumps out; please choose scan and recover, the disk will run normally.

For Mac OS: Reconnect Z1, then can work normally.

For other operating systems (except windows and mac.), please check your system supported file types. The disk may not be detected under different OS. Under this condition, Z1 has to be formatted in order to match with OS, but all data will be deleted permanently.
Enjoy the excellent performance after activation.


Uninstall
When disconnecting Z1, please do ‘Reject Mass Storage’ to remove your drive safely.


Caution
If users are not following the instructions properly, company is not responsible for any damages or data loss caused by false operations


Important data backup
Please backup your important data constantly to prevent any losses. Our company will not take any responsibilities on users’ data loss.
